Stock Code:
ATV-22A
Stock Level:
Out of Stock
Aykom 22kw direct driven 4.08m3/142cfm Screw Compressor
Price:
NZD $0.00
Description

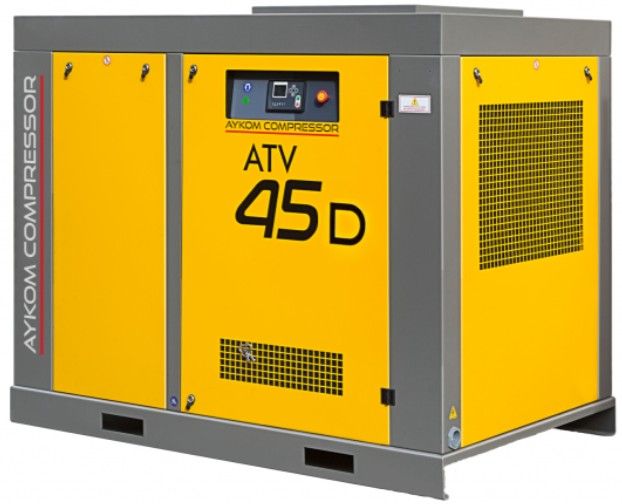

In the ATV D series, the electric motor and screw block are directly coupled with an elastomer coupling, ensuring power transmission with minimal loss. Coupled compressors minimize the maintenance needs of the drive system and eliminate energy losses caused by friction in belt-pulley drive systems. The ATV D coupled compressor series offers a wide product range from 5.5 kW to 315 kW. Capacity: 7 bar - 4.03 m3/min 10 bar - 3.03 m3/min 13 bar - 2.54 m3/min Motor Power: 22 kw/30hp Voltage/Phase: 400V/3PH Connections: 1 1/4" Dimensions (cms): 850L x 1388W x 1560H NOTE: Photo is of ATV45D not exact unit as reference. Enquire for more information specific to your requirements or a quote and delivery timeline.
Specifications
-
Key Feature Noun/Adjectiv:Screw
-
Rated Flow:4.08m3pm/142cfm
-
Rated Pressure:7-13bar
-
Power Source:400V/3Ph
-
Power Rating kW:22
-
Power Rating hp:30
-
Inlet Size Type:1 1/4"
-
Outlet Size and Type:1 1/4"
-
Weight KG:375
