Stock Code:
ATV-7.5
Stock Level:
In Stock

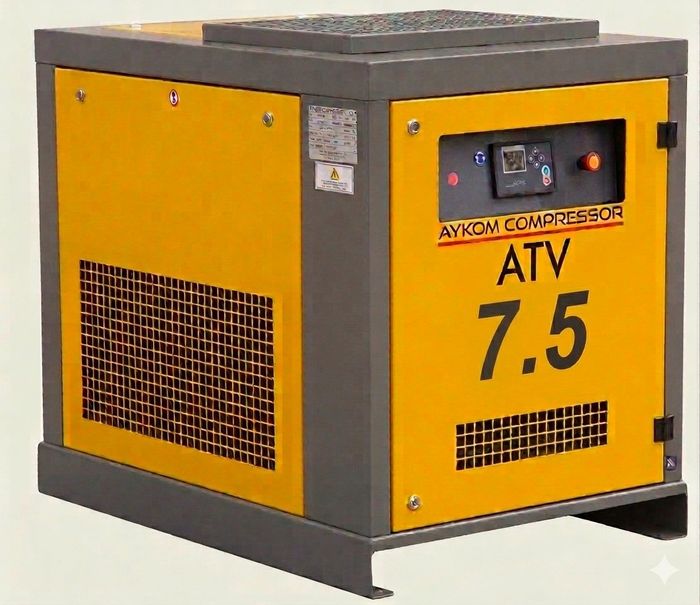

Aykom 7.5kw 1.1m3/39cfm Belt Drive Screw Air Compressor
Price:
NZD $11,544.98
Description
The ATV is an oil-injected belt-driven screw compressor series. With high-quality components, a specially designed belt-driven system, and an air cooling system, your compressor is ready to operate at maximum efficiency for extended periods. Our ATV series compressor models range from 3 kW to 75 kW and are suitable for use in various industrial applications. Capacity: 7 bar - 1.33 m3/min 10 bar - 0.97 m3/min 13 bar - 0.78 m3/min Motor Power: 7.5 kw/10hp Voltage/Phase: 400V/3PH Connections: 3/4" Dimensions (cms): 643L x 817W x 865H NOTE: Photo is of ATV15 not exact unit as reference. Enquire for more information specific to your requirements.
Specifications
-
Key Feature Noun/Adjectiv:Screw
-
Rated Flow:1.1m3pm/39cfm
-
Rated Pressure:7-13bar
-
Power Source:400V/3Ph
-
Power Rating kW:7.5
-
Power Rating hp:10.1
-
Inlet Size Type:3/4"
-
Outlet Size and Type:3/4"
-
Weight KG:150
