Stock Code:
ATV-11
Stock Level:
In Stock

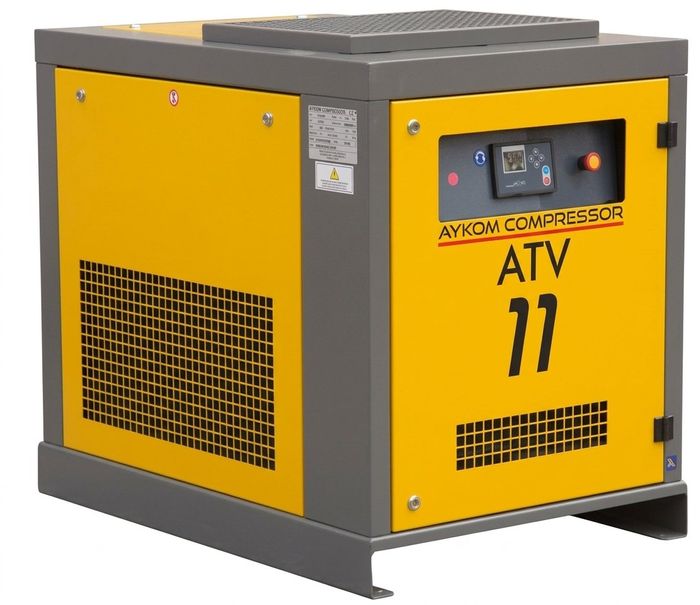

Aykom 11kW 1.7m3/60cfm Belt Driven Air Screw Compressor
Price:
NZD $12,289.83
Description

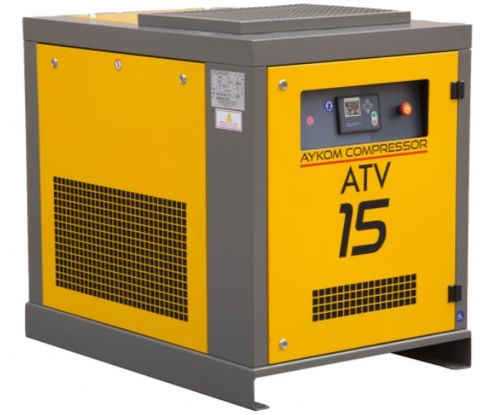

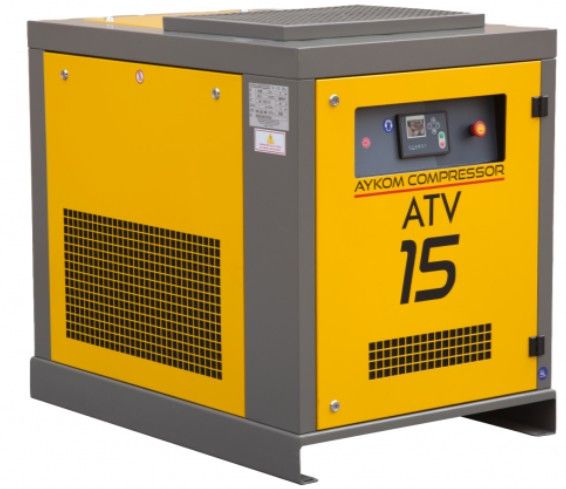

The ATV is an oil-injected belt-driven screw compressor series. With high-quality components, a specially designed belt-driven system, and an air cooling system, your compressor is ready to operate at maximum efficiency for extended periods. Our ATV series compressor models range from 3 kW to 75 kW and are suitable for use in various industrial applications. Capacity: 7 bar - 1.97 m3/min 10 bar - 1.61 m3/min 13 bar - 1.34 m3/min Motor Power: 11 kw/15hp Voltage/Phase: 400V/3PH Connections: 3/4" Dimensions (cms): 643L x 817W x 865H NOTE: Photo is of ATV15 not exact unit as reference. Enquire for more information specific to your requirements.
Specifications
-
Key Feature Noun/Adjectiv:Screw
-
Rated Flow:1.7m3pm/60cfm
-
Rated Pressure:7-13bar
-
Power Source:400V/3Ph
-
Power Rating kW:11
-
Power Rating hp:15
-
Inlet Size Type:3/4"
-
Outlet Size and Type:3/4"
-
Weight KG:150
