Stock Code:
ATV-4
Stock Level:
Out of Stock

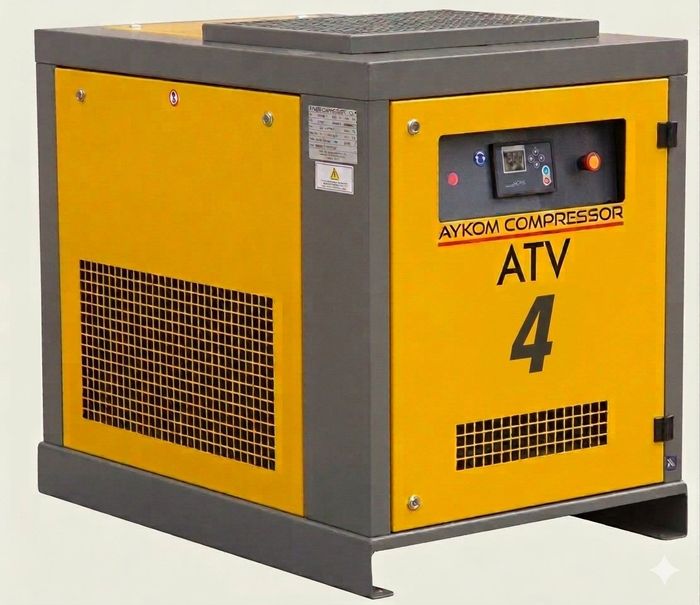

Aykom 4kw 0.58m3 / 20cfm belt drive Screw Compressor
Price:
NZD $5,014.80
Description

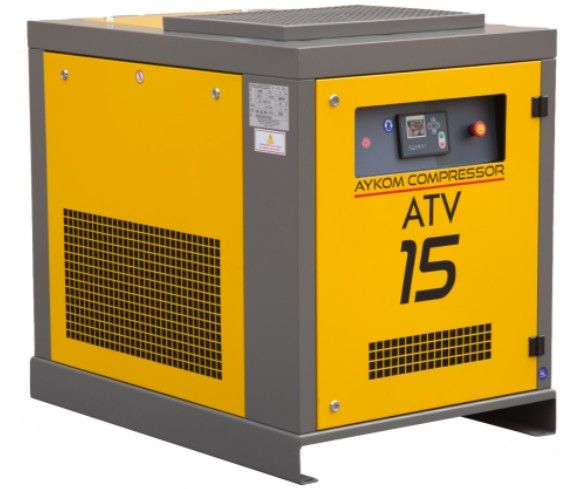

The ATV is an oil-injected belt-driven screw compressor series. With high-quality components, a specially designed belt-driven system, and an air cooling system, your compressor is ready to operate at maximum efficiency for extended periods. Our ATV series compressor models range from 3 kW to 75 kW and are suitable for use in various industrial applications. Capacity: 7 bar - 0.64 m3/min 10 bar - 0.49 m3/min 13 bar - 0.40 m3/min Motor Power: 4 kw/5.5hp Voltage/Phase: 400V/3PH Connections: 1/2" Dimensions (cms): 603L x 747W x 705H NOTE: Photo is of ATV15 not exact unit as reference. Enquire for more information specific to your requirements.
Specifications
-
Key Feature Noun/Adjectiv:Screw
-
Rated Flow:0.58m3pm/20cfm
-
Rated Pressure:7-13bar
-
Power Source:400V/3Ph
-
Power Rating kW:4
-
Power Rating hp:5.4
-
Inlet Size Type:1/2"
-
Outlet Size and Type:1/2"
-
Weight KG:125
