Stock Code:
ATV-22
Stock Level:
Out of Stock

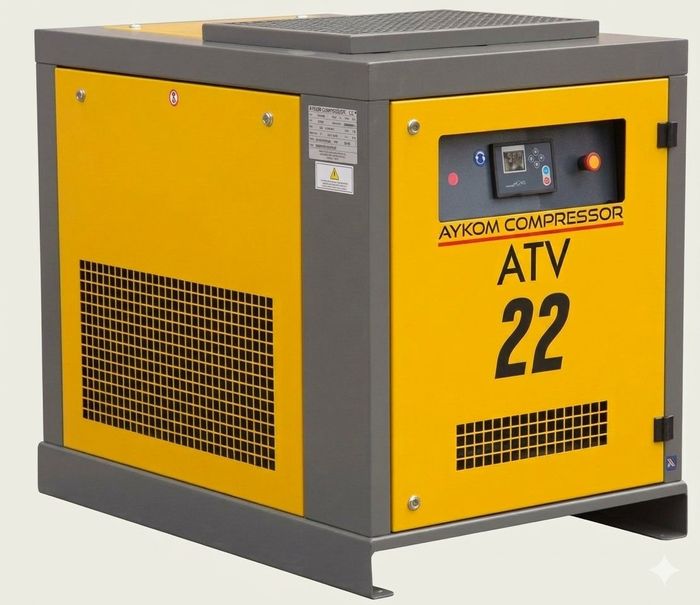

Aykom 22kw 3.6m3 / 127cfm Belt Drive Screw Compressor
Price:
NZD $15,739.50
Description

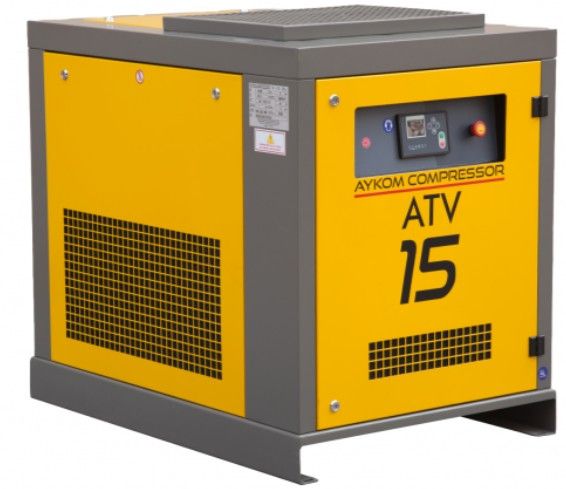

The ATV is an oil-injected belt-driven screw compressor series. With high-quality components, a specially designed belt-driven system, and an air cooling system, your compressor is ready to operate at maximum efficiency for extended periods. Our ATV series compressor models range from 3 kW to 75 kW and are suitable for use in various industrial applications. Capacity: 7 bar - 3.80 m3/min 10 bar - 3.10 m3/min 13 bar - 2.63 m3/min Motor Power: 22 kw/30hp Voltage/Phase: 400V/3PH Connections: 3/4" Dimensions (cms): 643L x 817W x 865H NOTE: Photo is of ATV15 not exact unit as reference. Enquire for more information specific to your requirements.
Specifications
-
Key Feature Noun/Adjectiv:Screw
-
Rated Flow:3.6m3pm/127cfm
-
Rated Pressure:7-13bar
-
Power Source:400V/3Ph
-
Power Rating kW:22
-
Power Rating hp:30
-
Inlet Size Type:1"
-
Outlet Size and Type:1"
-
Weight KG:250
