Stock Code:
ATV-15
Stock Level:
In Stock

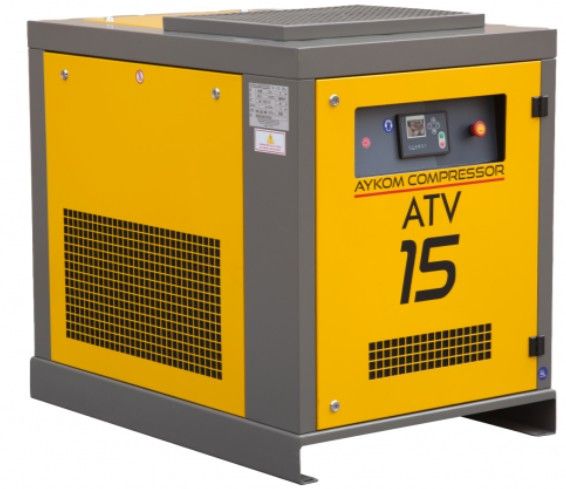

Aykom 15kW 2.5m3/88cfm Belt Driven Air Screw Compressor
Price:
NZD $14,997.97
Description
The ATV is an oil-injected belt-driven screw compressor series. With high-quality components, a specially designed belt-driven system, and an air cooling system, your compressor is ready to operate at maximum efficiency for extended periods. Our ATV series compressor models range from 3 kW to 75 kW and are suitable for use in various industrial applications. Capacity: 7 bar - 2.28 m3/min 10 bar - 1.89 m3/min 13 bar - 1.51 m3/min Motor Power: 15 kw/20hp Voltage/Phase: 400V/3PH Connections: 1" Dimensions (cms): 820L x 1170W x 1043H Enquire for more information specific to your requirements.
Specifications
-
Key Feature Noun/Adjectiv:Screw
-
Rated Pressure:7-13bar
-
Power Source:400v/3PH
-
Power Rating kW:15kw
-
Power Rating hp:20hp
-
Inlet Size Type:3/4"
-
Outlet Size and Type:3/4"
-
Weight KG:150
