SS AquaStrong 750w, 16.5m3ph, 18mhead, 2' outlet, Pass 25mm particle 240v Pump
Description

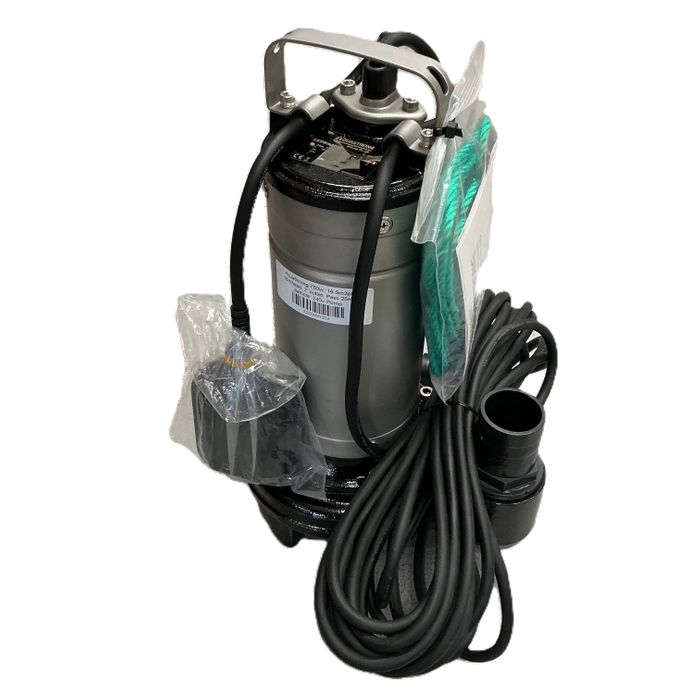

The AquaStrong ESSWM100A is a heavy-duty, single-phase 240V submersible vortex sewage and drainage pump. Positioned as the step-up sibling to the ESSWM50A, this 1 Horsepower (750W) model delivers significantly higher flow velocities and vertical lift capacity. It is engineered with a wide vortex channel specifically tailored to pass large, stringy debris and solids up to 25 mm in diameter without clogging. Power Rating: 750W (1.0 Horsepower). Maximum Flow Rate: 16.5 cubic meters per hour (m³/h) - equivalent to 275 Liters per minute. Maximum Head (Lift Height): 18 meters (Provides a max pressure of approx. 25 PSI). Solid Particle Passage: Up to 25 mm. Outlet Size: 2 inches (50 mm) threaded discharge flange. Electrical Input: 240V / 50Hz single-phase power supply (equipped with a standard 10-meter H07 RNF power cable). Premium Construction features an AISI 304 stainless steel motor housing, sleeve, upper handle, and drive shaft. The lower hydraulic pump body is built from heavy-duty cast iron treated with anti-rust coatings to withstand corrosive and abrasive wastewater. Thermal Overload Protection: Motor windings are 100% copper and feature an integrated automatic thermal protector to cut power if the pump overheats. Utilizes high-grade Silicon Carbide (SiC) to graphite mechanical seals alongside an oil bath design to ensure complete waterproof integrity (IPX8 rated). Includes an integrated heavy-duty mechanical float switch for automated start/stop level control. Common Applications: The combination of an 18-meter vertical head lift and a 25 mm solid passage threshold makes the ESSWM100A optimal for emptying domestic and civil sewage collection pits, cesspools, and septic setups. Pumping out deep agricultural sumps, livestock effluent pits, and high-volume water transfers. Clearing heavily loaded stormwater retention basins or deep foundation trenches on construction sites.
Specifications
-
Key Feature Noun/Adjectiv:Vortex Pump
-
Rated Flow:0.275m3pm
-
Rated Pressure:25PSI
-
Power Source:240V
-
Power Rating kW:0.75
-
Power Rating hp:1
-
Outlet Size and Type:50mm
-
Material:Stainless Steel
-
Weight KG:15
