AquaStrong 1HP. (0.55kw rated) 3.2a 45mh max, 35mh rated. 5.5m3/h max 3m3/h rated 240v Pump
Description

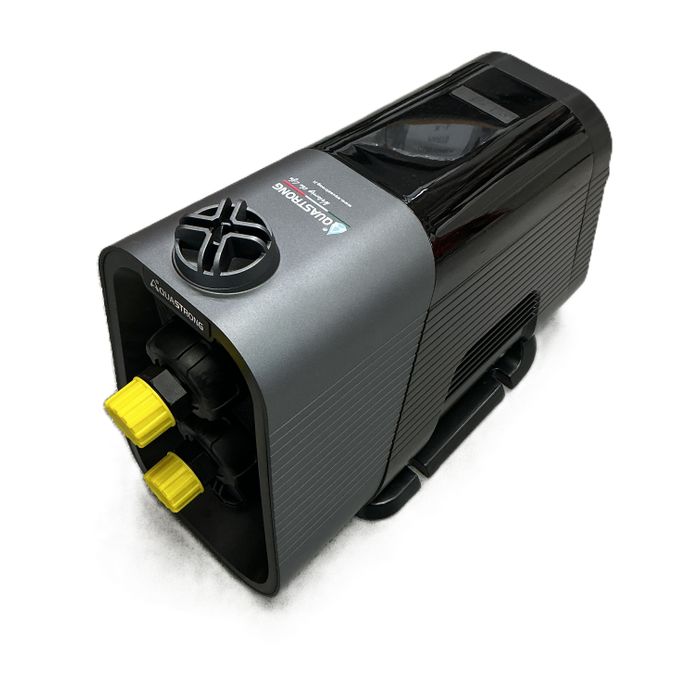

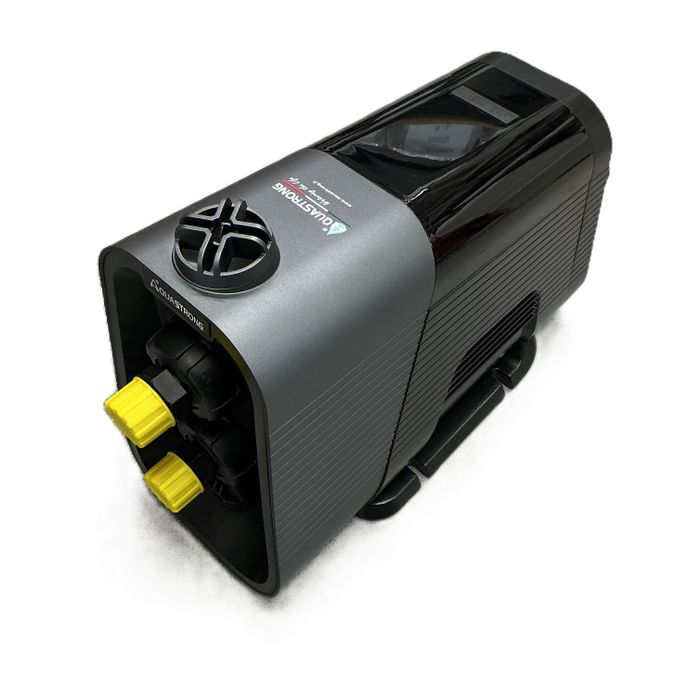

The AquaStrong Smart45 is a Whole House Water Pressure Booster Pump. Unlike standard fixed-speed pumps, this is an advanced all-in-one smart variable speed booster system that automatically adjusts its motor speed to maintain constant water pressure across multiple taps. Power Rating: 1 HP peak (750W max) with a high-efficiency 0.55kW (550W) rated operating consumption. Electrical Draw: 3.2 Amps running on a standard 240V single-phase power supply. Head Capacity (Pressure): 45 meters maximum head (˜ 64 PSI), with a rated operating head of 35 meters. Flow Volume: 5.5 m³/h max flow (˜ 91.6 LPM), with a rated optimal output of 3.0 m³/h (50 LPM). Plumbing Connections: 25mm BSP, inlet and outlet sizes. Ultra-quiet operation operating at roughly 55 dB housed inside a lightweight 13.9 kg composite shell. The integrated drive senses pipeline usage in real time, fluctuating its RPMs so your shower pressure never drops when someone else turns on a tap or flushes a toilet. Up to 80% Energy Savings: By using variable frequency technology (5200 RPM max) instead of running at 100% capacity around the clock, it drastically reduces your power bills compared to traditional single-speed jet pumps. Comprehensive Fault Protections: The digital control panel features automatic safety shut-offs for pipe leakage, dry-running (no water supply), motor blockage, and thermal overloading.
Specifications
-
Key Feature Noun/Adjectiv:Jet
-
Rated Flow:0.092m3pm
-
Rated Pressure:64PSI
-
Power Source:240V
-
Power Rating kW:0.75
-
Power Rating hp:1
-
Inlet Size Type:25mm
-
Outlet Size and Type:25mm
-
Material:Composite (Generic)
-
Weight KG:13.9
