Honda GX200 Engine
Description

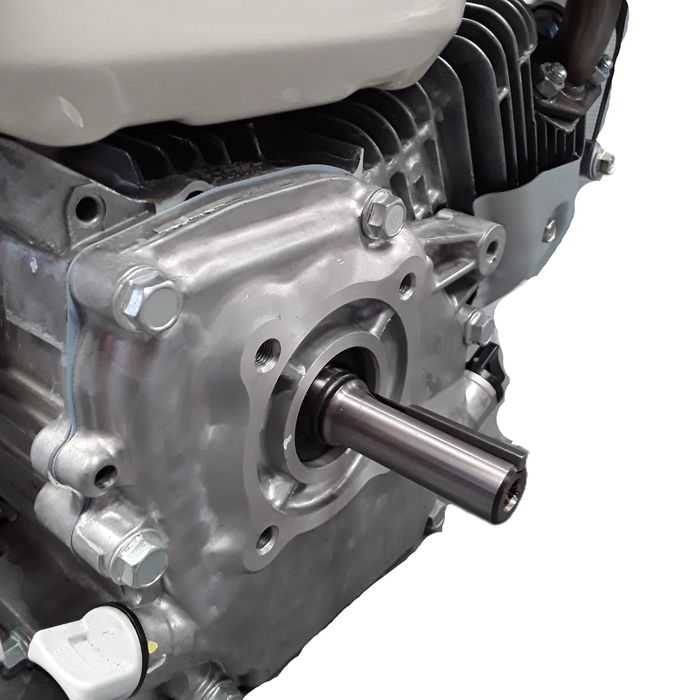

The Honda GX200 is a legendary, 196cc single-cylinder 4-stroke petrol engine widely recognized as the commercial standard for utility equipment. It features an overhead valve (OHV) layout and an air-cooled horizontal shaft design, optimized to deliver stable power, high fuel efficiency, and reduced emissions. Displacement: 196 cm³ (cc) Net Power Output: 5.5 HP (4.1 kW) @ 3,600 rpm (Max gross rating up to 6.5 HP) Max Net Torque: 12.4 Nm @ 2,500 rpmFuel Tank Capacity: 3.1 Litres Fuel Consumption: 1.7 L/hour @ 3,600 rpm Oil Capacity: 0.6 Litres Dry Weight: 16.1 kg Standard Shaft: 3/4-inch (19.05 mm) keyed shaft. Extreme Durability: Features a rugged cast-iron cylinder sleeve, a ball bearing-supported crankshaft, and a forged steel crankshaft to survive brutal industrial environments. Smooth & Quiet: Precision-engineered helical cut gears and lightweight noise-reducing materials keep vibration down and operational sound levels exceptionally low. Easy Starting: Equipped with an automatic mechanical decompression system and a digital transistorized magneto ignition to guarantee effortless pull-starts. Built-In Engine Protection: Utilizes Honda’s specialized Oil Alert system, which automatically shuts down or prevents the engine from starting if the crankcase oil drops to a dangerous level.
Specifications
-
Key Feature Noun/Adjectiv:GX200
-
Power Source:Petrol
-
Power Rating kW:4.8
-
Power Rating hp:6.5
-
Material:Aluminium
-
Weight KG:16
