Shurflo Pump 12v11.3 Ltr 3 Bar 45psi
Description

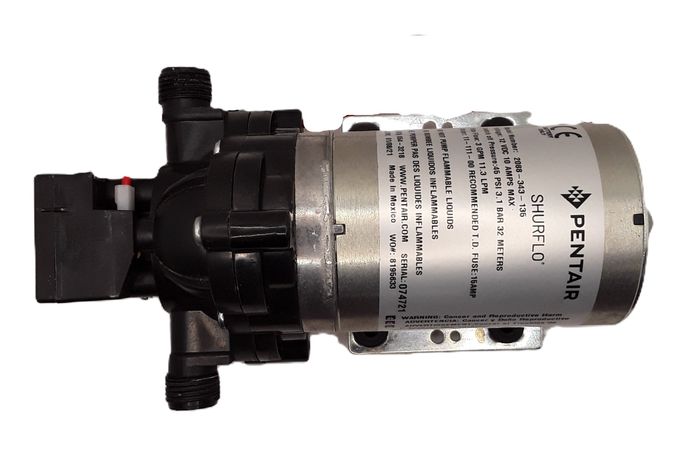

The Shurflo 2088-343-135 is a heavy-duty, 12V DC positive displacement 3-chamber diaphragm pump. It is explicitly designed for reliable performance in high-flow, moderate-pressure applications, primarily within agricultural spraying, liquid fertiliser application, and spot spraying. Flow Rate: 11.3 Litres per minute (LPM) / 3.0 Gallons per minute (GPM) open flow. Maximum Pressure: 3 Bar / 45 PSI. Maximum Current Draw: 7.7 to 8.0 Amps. Inlet/Outlet Ports: 1/2-14 MSPT (Male Straight Parallel Thread) / 1/2" Male BSP.Self-Priming: Up to 2.4 to 3.7 meters vertically. Chemical-Resistant Build: Constructed with a Polypropylene housing, Viton valves, and a Santoprene diaphragm. This specific material combination makes it highly resistant to corrosive agricultural chemicals, herbicides, pesticides, and liquid fertilizers. Features a built-in, factory-set 45 PSI automatic demand switch. The pump shuts off automatically when the discharge pressure reaches 45 PSI and restarts when the pressure drops, eliminating the need for an external pressure regulator. Designed to safely run dry without sustaining internal damage, protecting the unit if your fluid tank goes completely empty. Includes an integrated one-way check valve to stop the reverse flow of fluids back into your solution tank.
Specifications
-
Key Feature Noun/Adjectiv:Shurflo
-
Rated Flow:0.0113m3pm
-
Rated Pressure:45PSI
-
Power Source:12V
-
Material:Polypropylene (PP)
-
Weight KG:2.5
