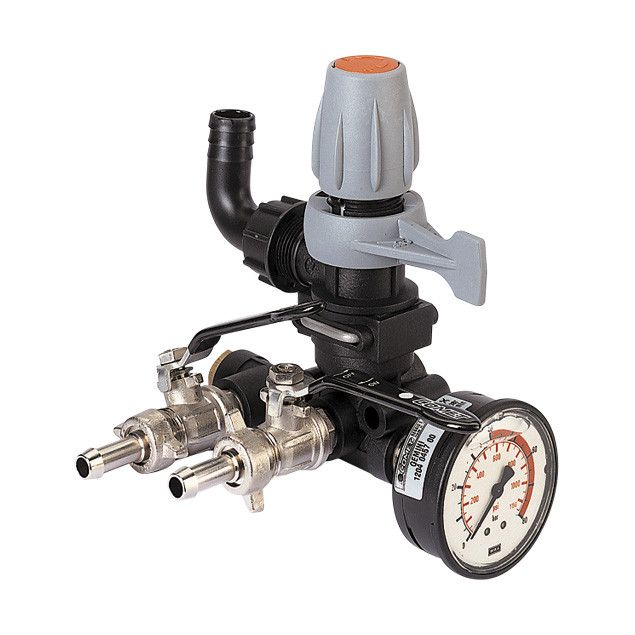

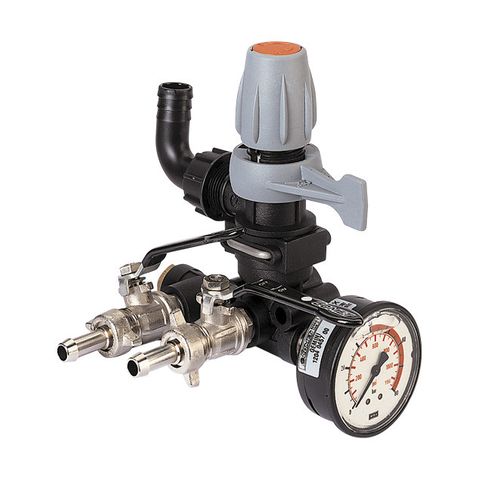

Gemini Contoller APS41 2w 40b 50l
Description
The Comet Gemini APS41 2W 40B 50L is a high-pressure manual control regulator valve specifically designed for agricultural and horticultural diaphragm spray pumps. It is engineered to mount directly or remotely onto Comet APS Series 31 and 41 triple-diaphragm pumps, allowing operators to safely manage chemical delivery pressures for boom spraying or hand-gun applications. Gemini Controller: Comet's proprietary "Gemini" series architecture, featuring a corrosion-resistant polyamide body and an integrated anti-drip suction system. APS41: Optimized matching profile for the Comet APS41 Diaphragm Pump. 2W (2-Way): Features two operational delivery outlets controlled via ball-valve levers to run separate spray booms or hose reels. 40B (40 Bar): Rated for a maximum structural working pressure of 40 Bar (equivalent to 580 PSI). 50L (50 L/min): Capable of handling maximum liquid volume throughputs up to 50 Litres per minute. Proportional Regulation Valve: Features an adjustable control knob paired with an internal maximum pressure safety bypass valve to safeguard your system from sudden pressure spikes. General Shut-Off Lever: A heavy-duty master dump lever that drops pump system pressure instantly and routes all liquid volume straight to the tank bypass. Anti-Drip Mechanism: Employs an internal suction device that draws back remaining fluid from the lines when turned off, stopping accidental chemical dripping in the field. Physical Connections: Built with a modular flanged pump inlet connection, a large 19mm bypass hose tail, and dual 10mm delivery line outlets.
Specifications
-
Key Feature Noun/Adjectiv:APS41
-
Rated Flow:0.05m3pm
-
Rated Pressure:580PSI
-
Weight KG:1
