Digital Flow Meter 25mm Piusi
Description

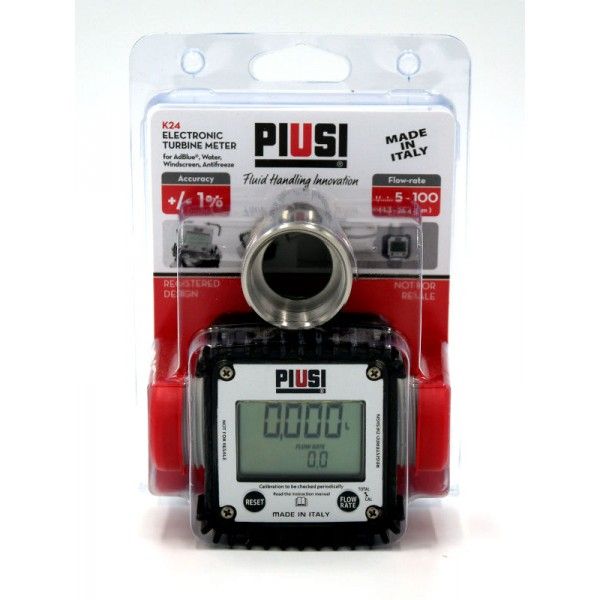

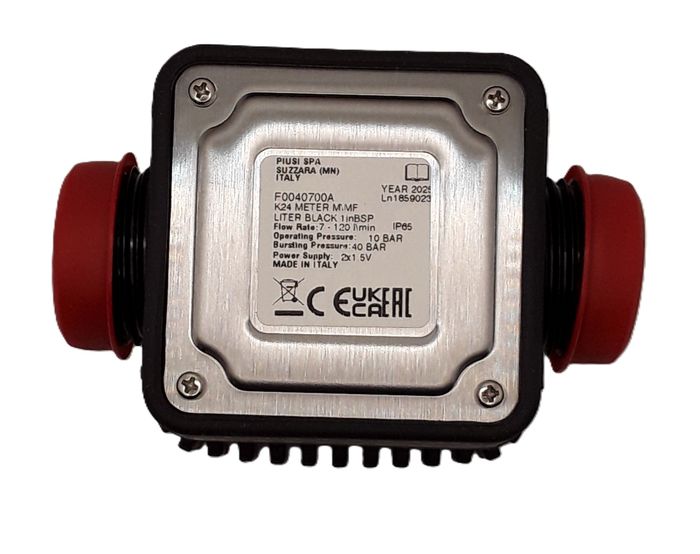

The PIUSI K24 25mm (1 inch) Digital Flow Meter is a highly reliable, compact turbine-driven flow meter designed for low-viscosity fluids like Milk, diesel, water, and AdBlue. Flow Rate Range: 7 to 120 liters per minute (L/min). Connection Size: 25 mm / 1 inch BSP thread. Metering Accuracy: ± 1% precision following appropriate calibration. Maximum Pressure: 20 bar operating pressure, featuring a 100 bar burst threshold for aluminum builds. Power Source: Operates entirely on two AAA standard batteries. Equipped with a compact, rotatable LCD screen offering a 5-digit partial totalizer and a 6-digit non-resettable main counter. Built with a protective, sealed internal electronic board. Low Pressure Drop: Ensures high-speed transfer consistency with a negligible pressure drop under 0.03 bar.
Specifications
-
Key Feature Noun/Adjectiv:Digital
-
Inlet Size Type:25mm
-
Outlet Size and Type:25mm
-
Weight KG:0.4
