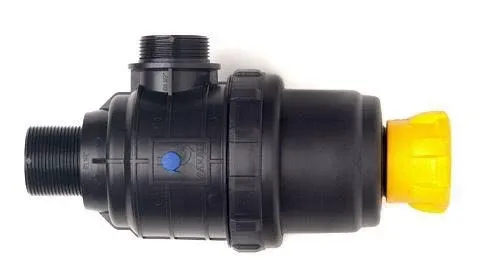

ARAG Suction Filter 1 1/2" C/W Auto Shutoff Filter Valve
Description
The ARAG 314 Series Suction Filter 1 1/2" 50 Mesh with Auto Shut-Off (Part Number 3142563) is an upgraded, valve-integrated fluid management assembly. Unlike the non shut-off variant (314163), this assembly features an integrated automatic shut-off valve. When the internal valve knob is turned or released, it seals off the flow from the spray tank, allowing you to unscrew the filter bowl and clean out the screen without losing any fluid. This version also features a dedicated auxiliary suction inlet (with a 38mm thread height dimension) used for filling the tank from an external water source. Engineered to maintain heavy-duty agricultural spray lines with a high filtering capacity of 100 to 160 L/min. Port Configuration: Standard 1 1/2" BSP main port threading. Comes with a fine blue 50-mesh stainless steel or polymer insert, providing 123 cm² of active surface area. Overall heightened profile of 278.5 mm (to accommodate the lower valve mechanics) with a standard housing outer diameter of 122 mm. Polypropylene body with standard EPDM seals.
