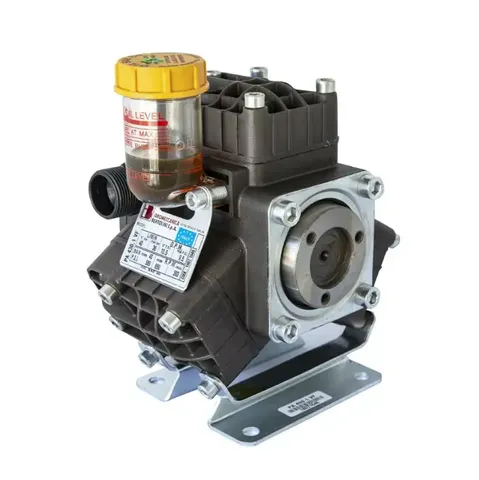

Pump Bare PA430 VF 40l/min 580 psi with Inlet and Outlet Fittings
Description
The BPPA430-0 Bare PA430 VF is a premium, medium-to-high pressure three-diaphragm spray pump manufactured by Bertolini. This "Bare" pump configuration comes with standard inlet and outlet fittings but excludes any input drive couplings or shafts, making it ideal for replacing an existing pump on an agricultural sprayer. Performance: Delivers a maximum flow rate of 40 L/min (10.6 USGPM) and a maximum pressure of 40 bar / 580 - 600 PSI. Power Requirements: Designed to run at a maximum of 550 RPM and requires a 4.0 HP engine capacity. Configuration ("VF"): Features a standard 3-hole flange mount setup, engineered with an oil-immersed mechanism and NBR diaphragms. Built with plastic-coated anodised aluminium bodies and 316 stainless steel valves to withstand harsh agricultural chemicals. The PA430 pump series is purpose-built for harsh environments and is most commonly used for: High-pressure hand-gun spraying, Small spray booms, Orchard and vineyard sprayers, atomisers, and disinfestation equipment.
Specifications
-
Weight KG:7.8
