Stock Code:
22-530/10 O/L
Stock Level:
In Stock

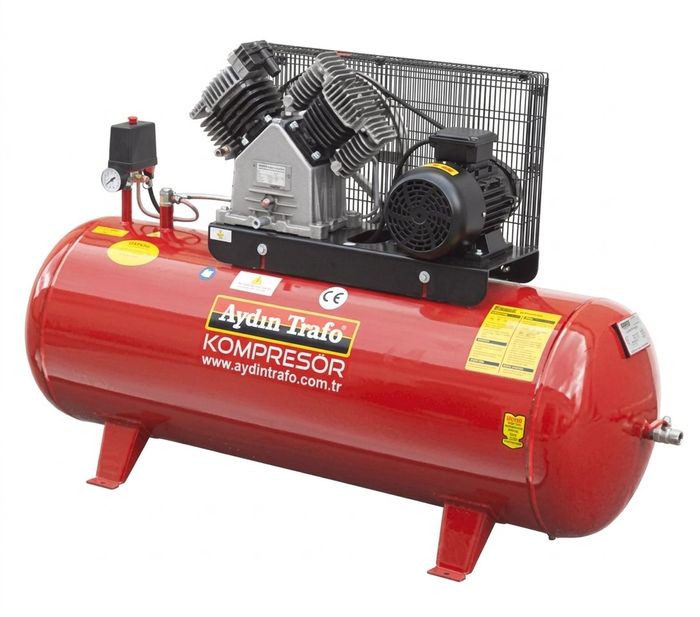

Aykom 7.5kW (10hp) 500 Litre 43cfm Overload Switch
Price:
$7,856.12 + GST
Description
The model 22-530/10 refers specifically to the Aykom 7.5kW (10hp) 530 Litre heavy-duty, three-phase reciprocating air compressor. Double-Stage Reciprocating / Piston. Motor Power: 7.5 kW / 10 HP. Air Displacement (Flow Rate): 1225 Litres per minute (approx. 43 CFM). Maximum Working Pressure: 12 Bar (approx. 175 PSI). Air Receiver Tank Capacity: 530 Litres nominal capacity. Power Supply Voltage: 380V - 400V / 3-Phase / 50Hz. Starter Configuration: Star-Delta (SD) automatic control panel. Pump Operating Speed: 1250 RPM. Drive System: Heavy-duty belt-pulley driven. Physical Weight: Approx. 350 kg.
Specifications
-
Reservoir Capacity:500L
-
Rated Pressure:175psi
-
Power Source:400V/3Ph
-
Power Rating kW:7.5
-
Power Rating hp:10
-
Weight KG:350
