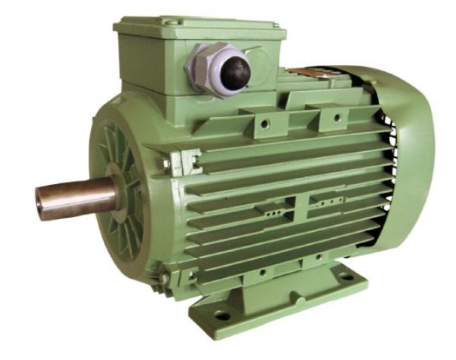

Electric Motor - 4hp 3kW 220V 1420rpm
Description
The TEE / WAT Motor QC100L2B is a premium-efficiency 3.0 kW (4.0 HP) single-phase AC induction electric motor. It is constructed with a metric 100L frame size and engineered for heavy-duty industrial tasks requiring high rotational speeds. Speed/Poles: 2-Pole (High-speed, running at roughly 2880 - 2920 RPM at 50Hz). Frame Size: 100L (100mm shaft centre height, long-axis frame layout). Energy Efficiency: IE3 Premium Efficiency standard. Enclosure Material: High-pressure die-cast aluminium housing engineered with an aerodynamic hexagonal cooling fin structure for optimal thermal control. Ingress Protection: Standard IP55 rating, protecting core internal electrical components against dust build-up and low-pressure fluid sprays. Insulation & Heating: Built with Class F insulation (155°C maximum thermal capacity) paired with a Class B temperature rise framework to extend system life. Installation Layout: Features a 90-degree rotatable terminal box and modular, fully detachable mounting feet to handle tight spaces easily. Common Applications: High-pressure industrial water pumps and fluid systems, Large-volume extraction and ventilation fans, High-capacity air compressors and processing tools, Heavily loaded conveyor lines and factory assembly gearboxes.
Specifications
-
Power Rating kW:3
-
Power Rating hp:4
-
Weight KG:21.6
