Aykom 15kw Compressor, Dryer & Filters, 750 litre Tank, Belt Drive
Description

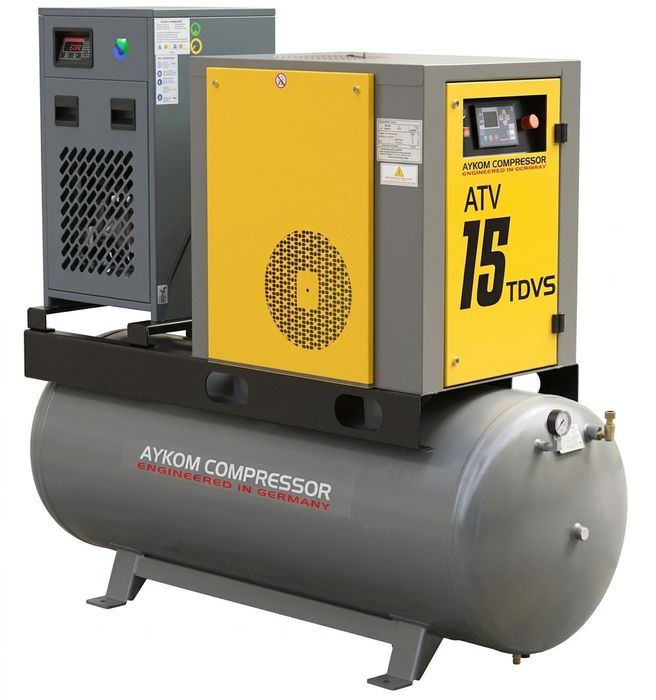

ATV TD is a series of belt-driven screw compressors that includes an internal air tank and dryer. The Poly V belt-pulley drive system ensures power transmission at maximum performance, while the CE-certified air tank has a capacity of 530 liters, and the compressed air dryer features a dew point of 3°C as standard equipment. Businesses that require dry compressed air can confidently choose the appropriate compressor model from our ATV TD series to meet their compressed air needs. Capacity: 7 bar - 2.28 m3/min 10 bar - 1.89 m3/min 13 bar - 1.51 m3/min Air Dryer Model: TMP-HK 155 Motor Power: 15 kw/20hp Voltage/Phase: 400V/3PH Connections: 3/4" Dimensions (cms): 643L x 1783W x 1646H Note: photo is not exact unit, this is a ATV 11 DK for reference. Enquire for more information specific to your requirements.
Specifications
-
Key Feature Noun/Adjectiv:Screw
-
Rated Pressure:7-13 bar
-
Power Source:400v/3ph
-
Power Rating kW:15
-
Power Rating hp:20
-
Inlet Size Type:3/4"
-
Outlet Size and Type:3/4"
-
Weight KG:400
