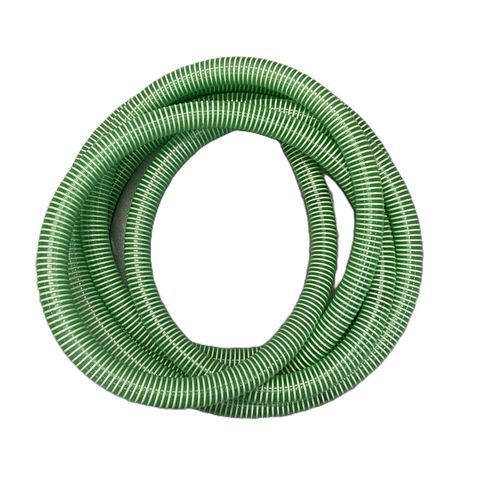

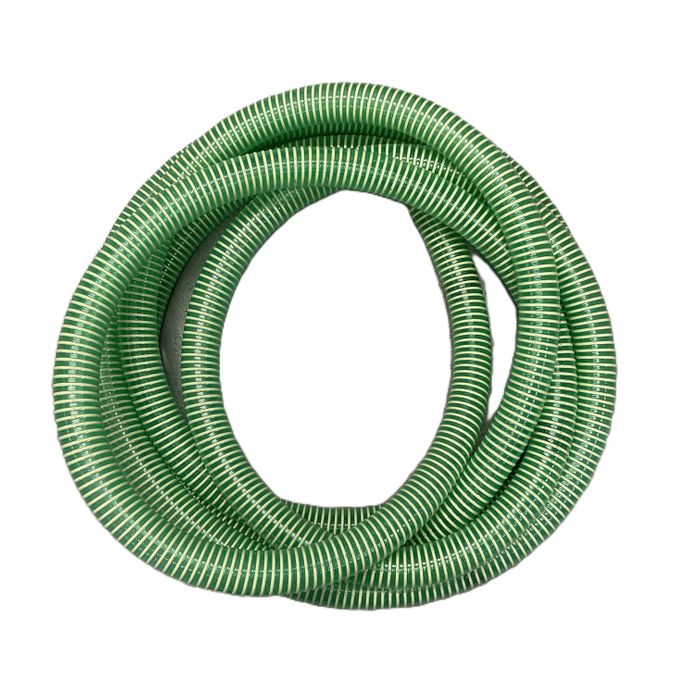

Suction 38mm MD
Description
The HELIFLEX 38 refers to a 38mm (1.5-inch) Medium Duty (MD) PVC Suction and Delivery Hose. This is a tough, versatile thermoplastic suction hose designed primarily for water transfer, agricultural spraying, dewatering, and general fluid suction applications. Constructed from flexible PVC integrated with an anti-shock, rigid PVC interior reinforcing spiral.Internal Bore: The interior wall is completely smooth to minimize friction loss, optimize flow rate, and prevent internal sediment or mineral buildup. Exterior Cover: Lightly corrugated or smooth PVC that provides high crush resistance, abrasion resistance, and protection against atmospheric UV agents or light chemicals. Nominal Inside Diameter (ID)38.0 mm (1-1/2")Approx. Outside Diameter (OD)~46.2 mm Typical Temperature Range-10°C up to +60°C (Special low-temp versions handle down to -25°C) Average Working Pressure~75 psi (5.1 Bar) at room temperatureMinimum Bend Radius~155.0 mm
Specifications
-
Key Feature Noun/Adjectiv:Green 38mm
-
Inlet Size Type:38mm
-
Outlet Size and Type:38mm
-
Material:PVC (Polyvinyl Chloride)
-
Weight KG:0.43
